Remove the rear wheel & tire.
Tightening torque :
88.3 107.9N.m (9.0 11.0kgf.m, 65.1 79.6lb-ft)


Be careful not to damage to the hub bolts when removing the front wheel & tire (A).

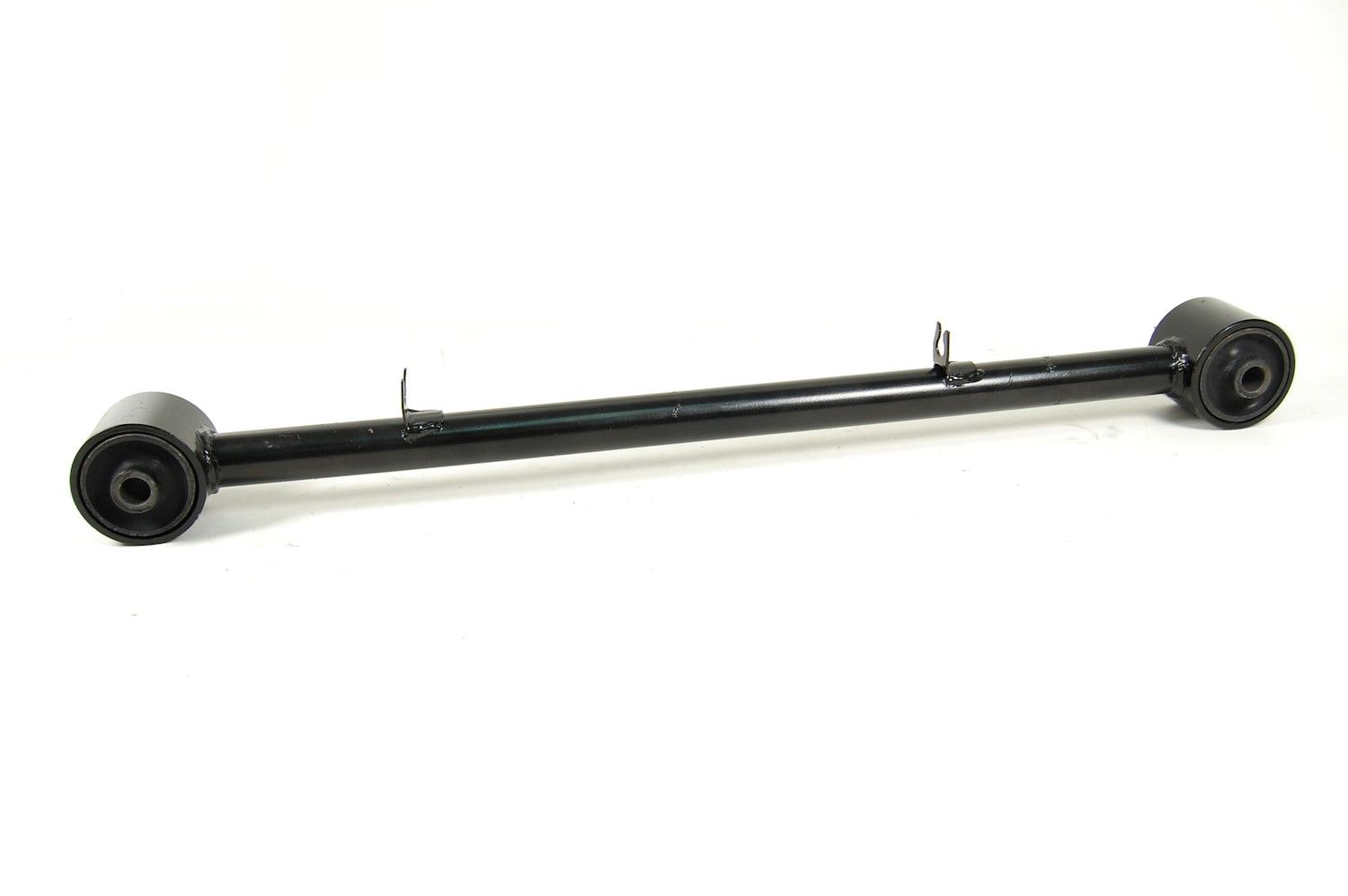

Loosen the nuts & bolts and then remove the trailing arm (A) with the rear axle.
Tightening torque
Bolt: 34.3 53.9N.m (3.5 5.5kgf.m, 25.3 39.8lb-ft)
Nut: 6.9 10.8N.m (0.7 1.1kgf.m, 5.1 8.0lb-ft)
[2WD]

[4WD]

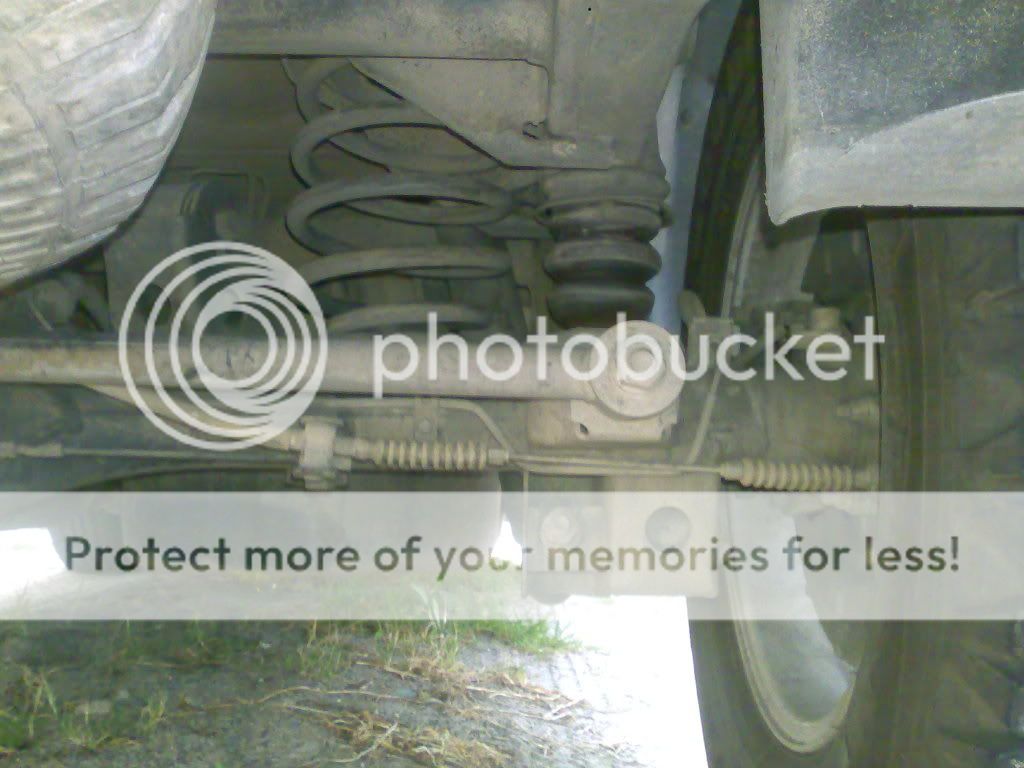

Loosen the parking brake cable bracket bolt (A) & height sensor bracket bolt (B).
Tightening torque
A: 9.8 16.7N.m (1.0 1.7kgf.m, 7.2 12.3lb-ft)
B: 3.9 5.9N.m (0.4 0.6kgf.m, 2.9 4.3lb-ft)
[2WD]

[4WD]

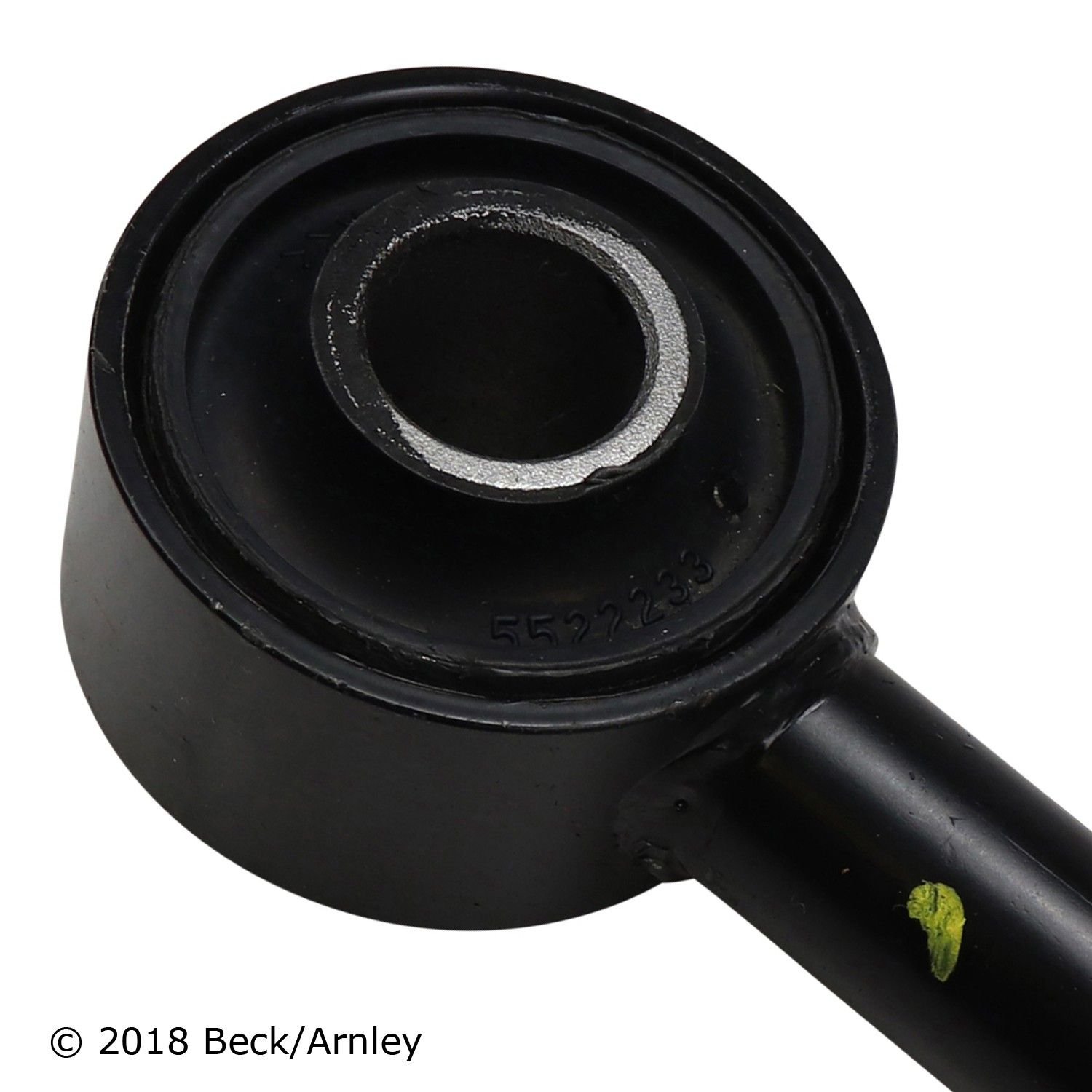

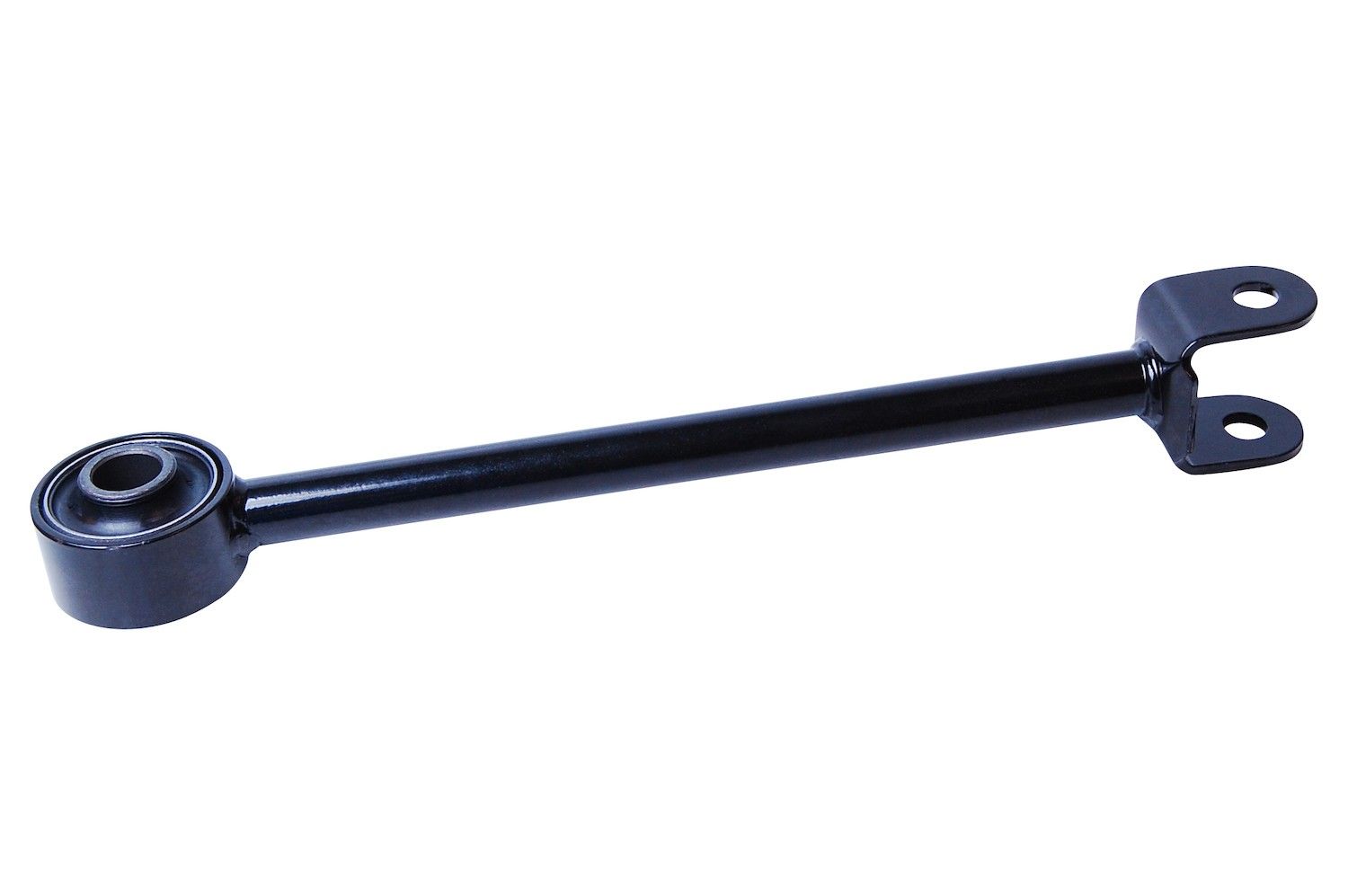

Loosen the mounting bolt and then remove the trailing arm (A) with the frame.
Tightening torque :
98.1 117.7N.m (10.0 12.0kgf.m, 72.3 86.8lb-ft)

Installation is the reverse of removal.
