Mazda 3 Service Manual: Blower Motor Installation Full Auto Air Conditioner

Mazda 3 Service Manual: Blower Motor Installation [Full Auto Air Conditioner]

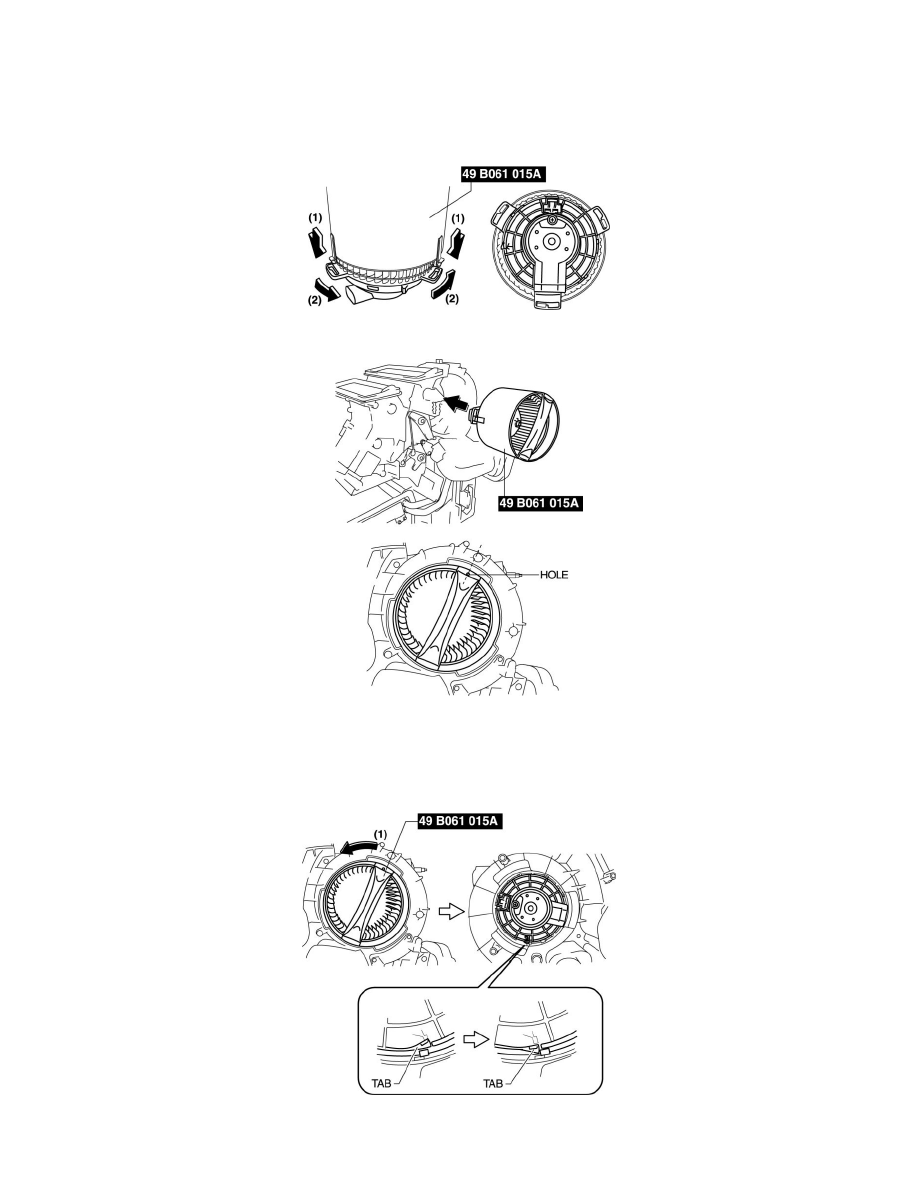

1. Install theSST (49 B061 015A)

to the blower motor.


2. Install the blower motor with theSST (49 B061 015A)

installed, to the A/C unit.


CAUTION:

  • To prevent damage to the sirocco fan, install the blower motor being careful that the blower motor does not interfere with the A/C unit. Also, another person must hold the blower motor at the installation position.

3. Rotate theSST (49 B061 015A)

until to the blower motor tab locked.


4. Connect the blower motor connector as shown in the figure.


5. Connect the blower motor cooling pipe.


6. Rotate theSST (49 B061 015A)

in the direction shown by the arrow.


7. Remove theSST (49 B061 015A)

from the blower motor.


8. Install the blower case.

CAUTION:

  • Install the blower case while pressing the dashboard insulator, otherwise the blower case could be damaged.

9. Install the screws shown in the figure.


10. Install the harness clip to the blower case.

11. Connect the air intake actuator connector.

12. Install the following parts:

a. Accelerator pedal.

b. Shower duct (Passenger-side).

c. Lower panel.

d. Hood release lever.

e. Dashboard under cover.

f. Glove compartment.

g. Shift panel.

h. Selector lever knob (ATX).

i. Shift lever knob (MTX).

j. Upper panel.

k. Front side trim.

l. Front scuff plate.

13. Connect the negative battery cable..

Blower Case Installation Note

1. If not replacing the blower case, replace the adhesive polyurethane on the fresh-air inlet of the blower case.


CAUTION:

  • To adhere new polyurethane properly, be sure to remove the adhesive agent and adhesive polyurethane completely.

NOTE:

  • If the blower case is removed or installed, the adhesive polyurethane can be damaged. Damaged adhesive polyurethane could cause abnormal noise or other malfunctions, therefore replace it.
