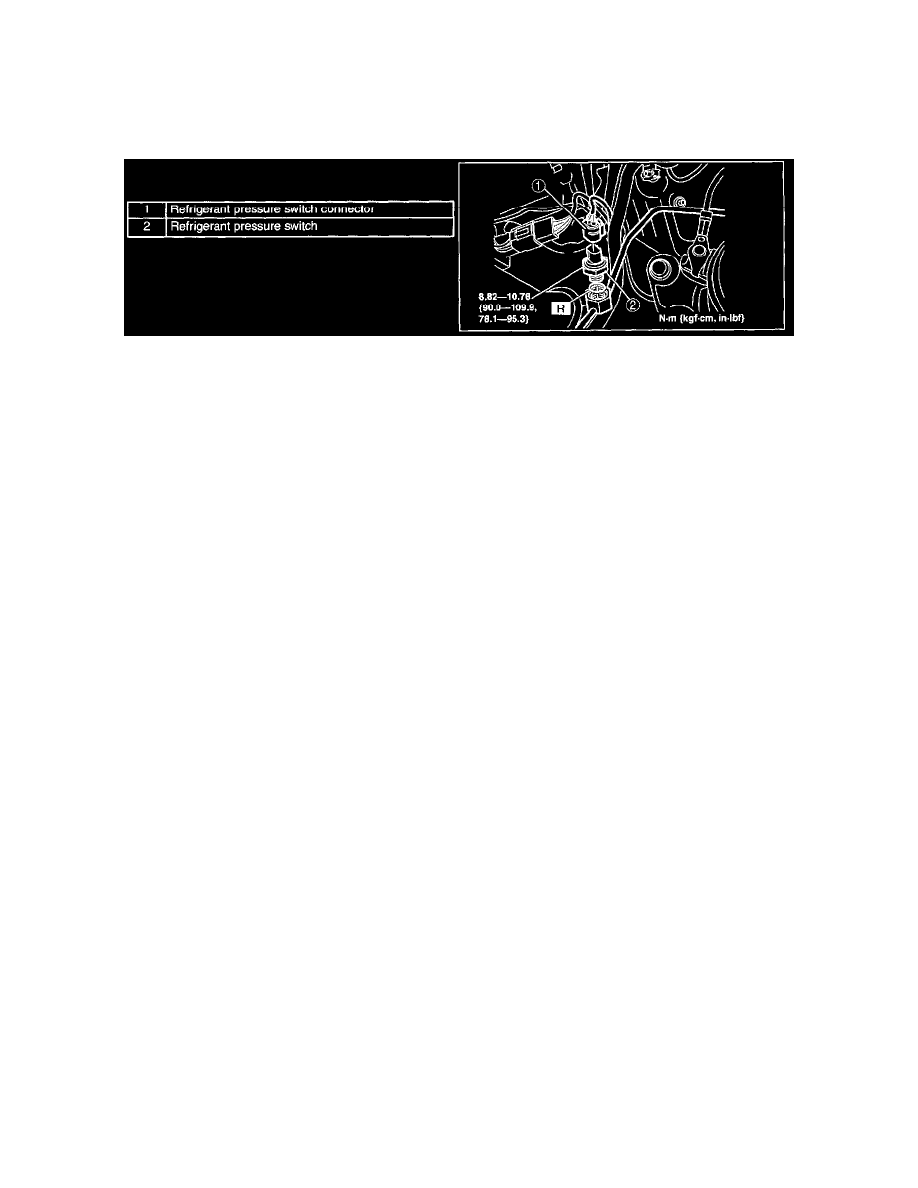

Mazda 3 Service Manual: Refrigerant Pressure Sensor Inspection [Manual Air Conditioner]

MZR 2.0, MZR 2.5

1. Install the manifold gauge.

2. Verify the high-pressure side reading of the manifold gauge.

3. Measure the terminal voltage of the climate control unit.

  • 1G,1H and 2J

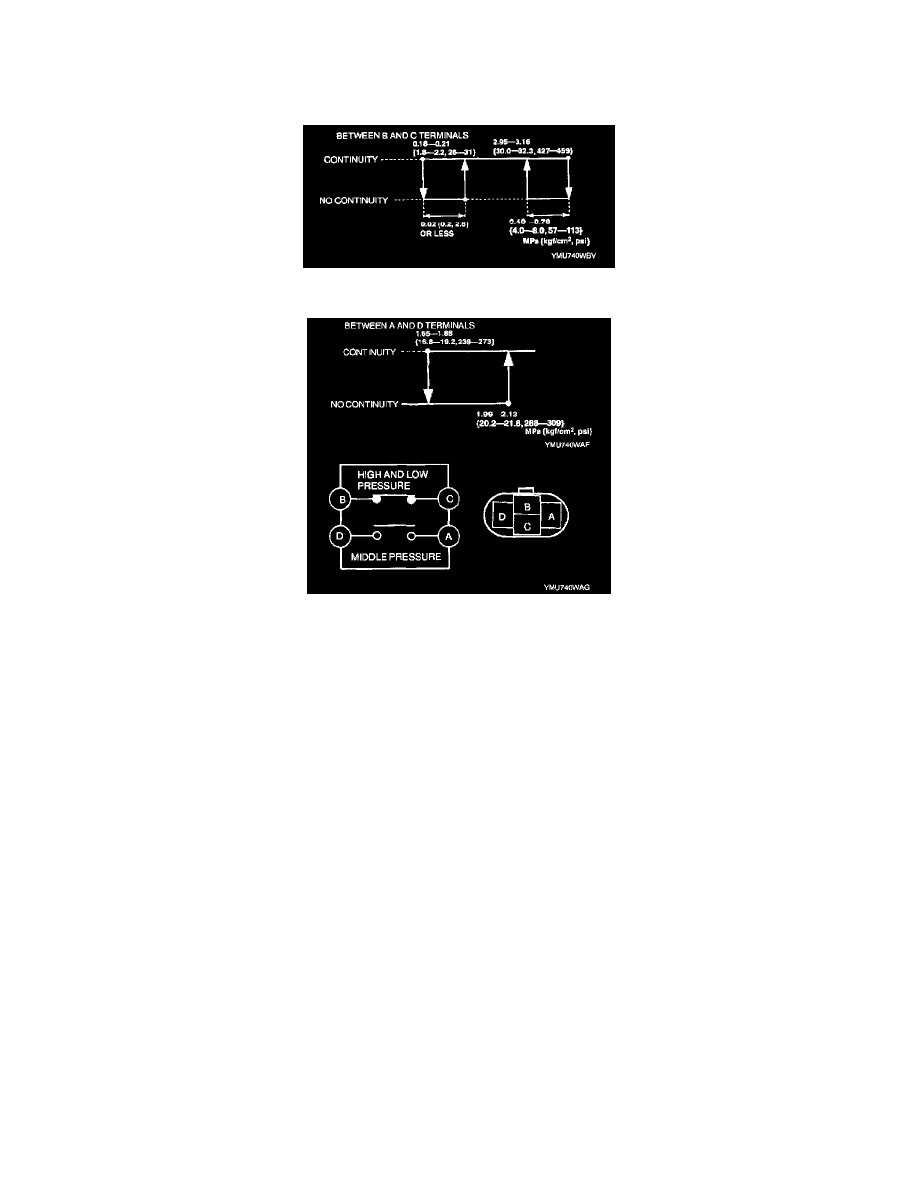

4. Verify that below graph as measure the terminal voltage 2J.

5. Follow the climate control unit inspection when measure the other terminal voltage..

  • Terminal 1G: 1.0 V or less

  • Terminal 1H: Approx. 5 V (Ignition switch on)

    • If the each voltage is not normal, inspect the related wiring harness.

      • If there is any malfunction, replace the related wiring harness.

      • If wiring harness is normal, replace the refrigerant pressure sensor.


SKYACTIV-G 2.0

1. Install the manifold gauge.

2. Verify the high-pressure side reading of the manifold gauge.

3. Measure the terminal voltage of the PCM.

  • 2BB, 2AX and 2AJ

4. Verify that below graph as measure the terminal voltage 2AX.

5. Follow the PCM inspection when measure the other terminal voltage..

  • Terminal 2BB: 1.0 V or less

  • Terminal 2AJ: Approx. 5 V (Ignition switch on)

    • If the each voltage is not normal, inspect the related wiring harness.

      • If there is any malfunction, replace the related wiring harness.

      • If wiring harness is normal, replace the refrigerant pressure sensor.
