Press the switch.

1 High temperature
2 Low temperature

The indicator light comes on when the switch is on.

■The seat heaters can be used when

■The seat heaters can be used when

► Vehicles without a smart key system The engine switch is in the “ON” position.

►Vehicles with a smart key system The engine switch is in IGNITION ON mode.

■When not in use

Put the switch in the neutral position. The indicator will turn off.

CAUTION

Burns

●Use caution when seating the following persons in a seat with the seat heater on to avoid the possibility of burns:

• Babies, small children, the elderly, the sick and the physically challenged • Persons with sensitive skin • Persons who are fatigued • Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)

●Do not cover the seat with anything when using the seat heater.

Using the seat heater with a blanket or cushion increases the temperature of the seat and may lead to overheating.

●Do not use seat heater more than necessary. Doing so may cause minor burns or overheating.

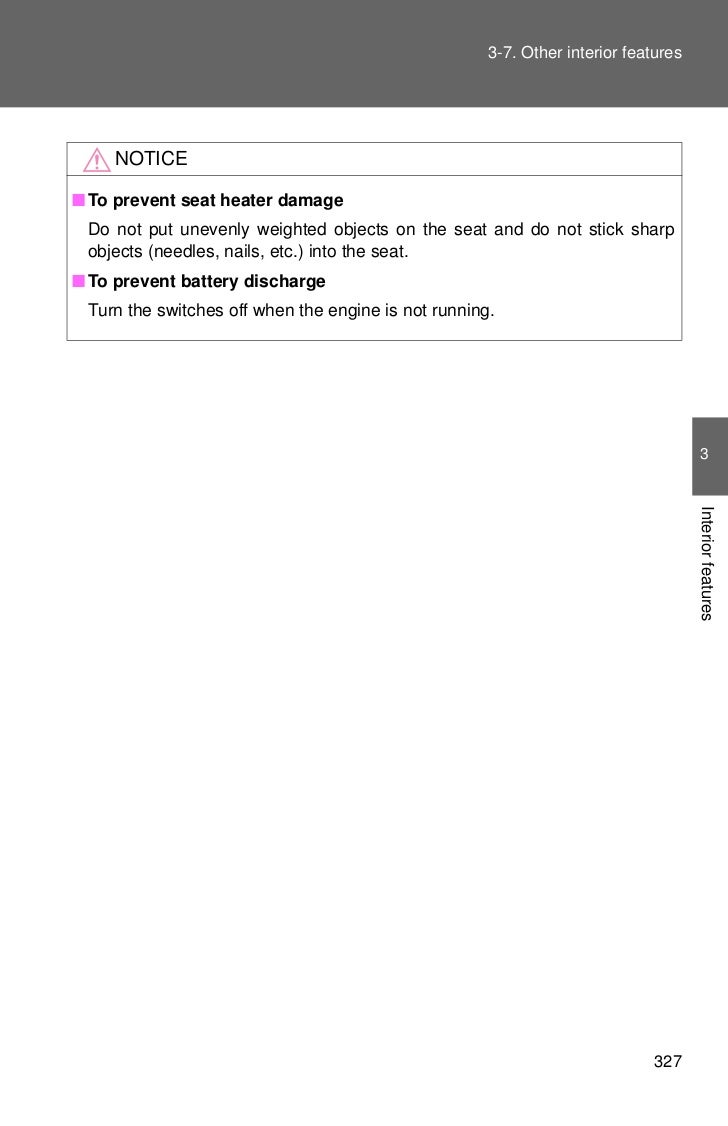

NOTICE

■To prevent seat heater damage

Do not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat.

■To prevent battery discharge

Turn the seat heaters off when the engine is not running.

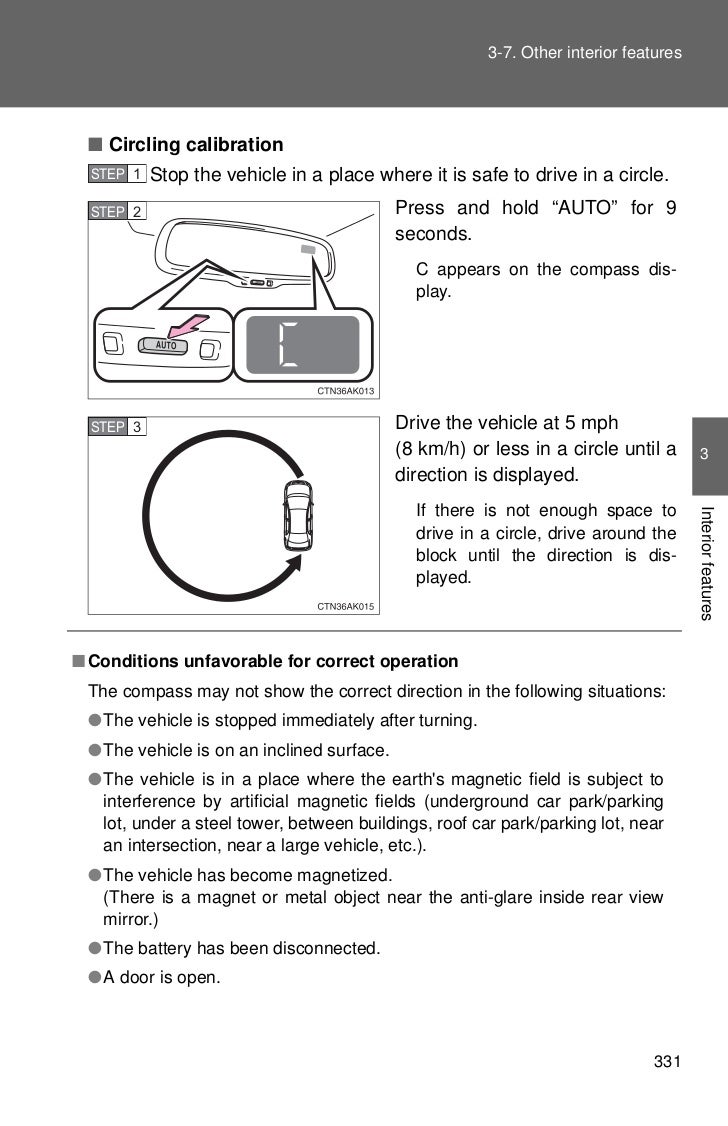

Calibrating the compass
