Toyota Highlander Service Manual: Rear axle LH hub bolt

Toyota Highlander Service Manual: Rear axle LH hub bolt

REPLACEMENT

HINT: COMPONENTS:SEE PAGE 30-4 Replace the RH side by the same procedures with the LH side.

1. REMOVE REAR WHEEL

2. SEPARATE REAR DISC BRAKE CALIPER ASSY LH (2WD DRIVE TYPE)

(a) Remove the 2 bolts and brake caliper.

(b) Support the brake caliper securely.

3. SEPARATE REAR DISC BRAKE CALIPER ASSY LH (4WD DRIVE TYPE)

4. REMOVE REAR DISC (SEE PAGE 32-29 )

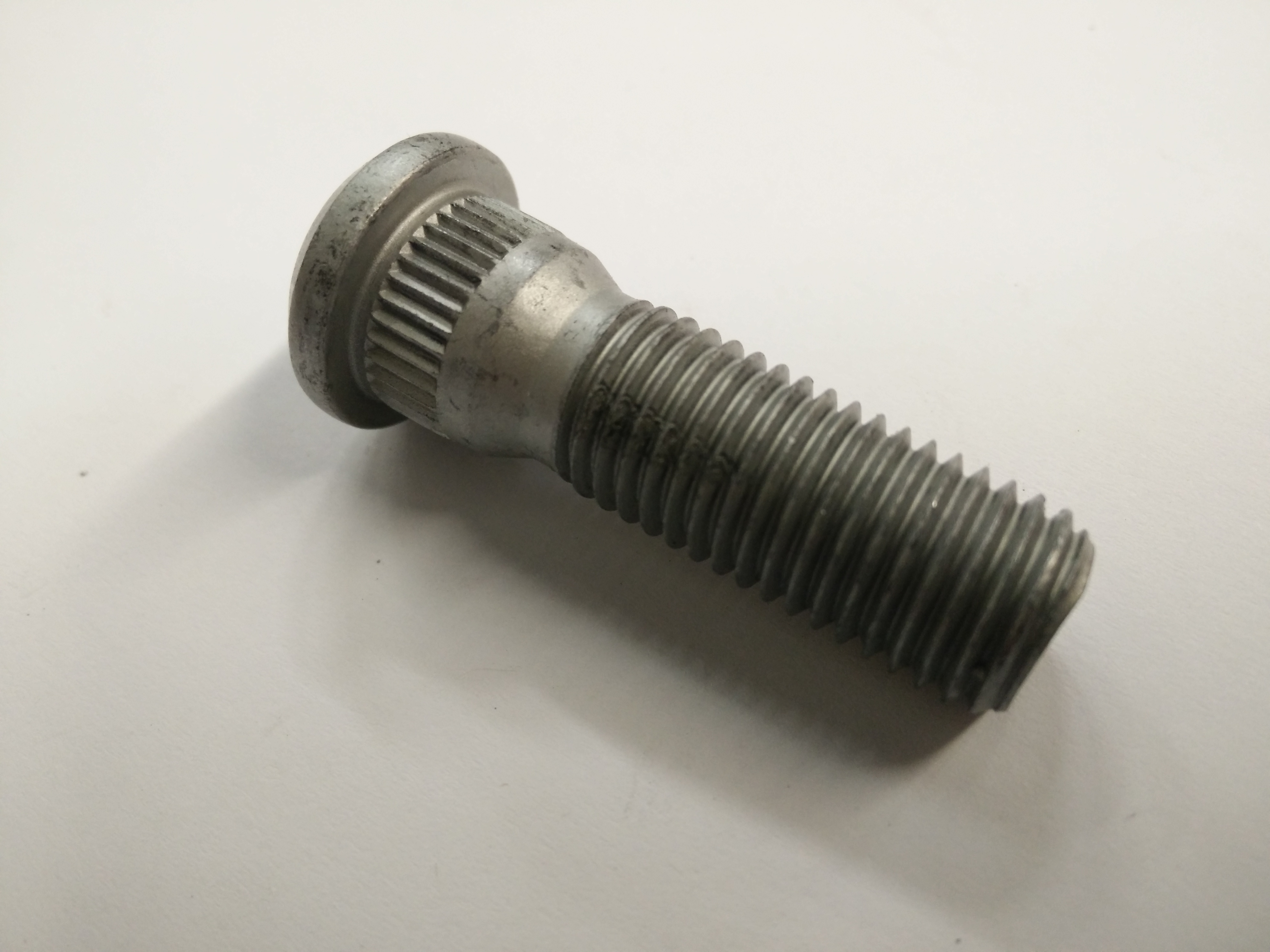

5. REMOVE REAR AXLE LH HUB BOLT

REMOVE REAR AXLE LH HUB BOLT


(a) Using SST and a screwdriver or an equivalent to hold, remove the hub bolt.

SST 09628-1001 1

6. INSTALL REAR AXLE LH HUB BOLT

 INSTALL REAR AXLE LH HUB BOLT


(a) Install a washer and nut to a new hub bolt as shown in the illustration.

(b) Using a screwdriver to hold, install the hub bolt by torquing the nut.

7. INSTALL REAR DISC (SEE PAGE 32-29 )

8. INSTALL REAR DISC BRAKE CALIPER ASSY LH (2WD DRIVE TYPE)

(a) Install the brake caliper with the 2 bolts.

Torque: 2WD: 61.8 NVm (630 kgfVcm, 46 ftVlbf)

9. INSTALL REAR DISC BRAKE CALIPER ASSY LH (4WD DRIVE TYPE)

(a) Install the brake caliper with the 2 bolts.

Torque: 4WD: 58 NVm (592 kgfVcm, 43 ftVlbf)

10.
